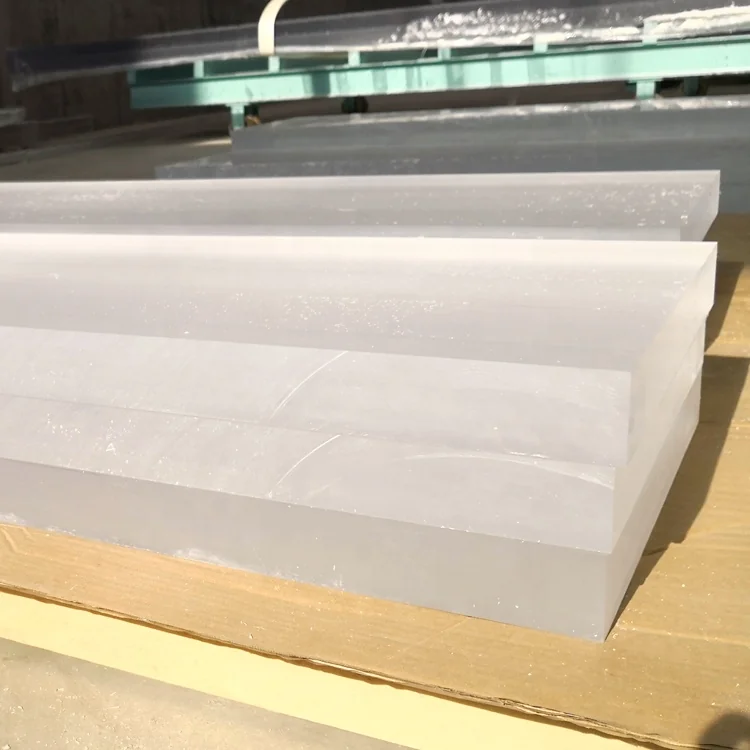

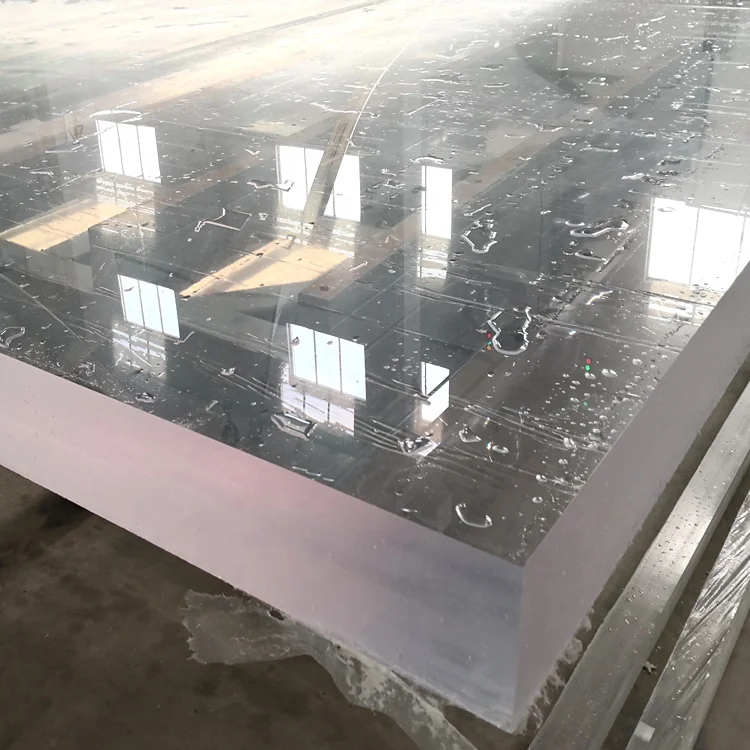

Clear swimming pool with 80mm thick acrylic sheet

$4.8 - 10.8 /Kilogram

Payment Type:

L/C,T/T

Incoterm:

FOB,CIF,EXW

Min. Order:

200 Kilogram

Transportation:

Ocean

Port:

Shanghai

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Material: Acrylic

Processing Service: Cutting

Density: 1.2g/Cm3

Surface: High Surface Hardness

Shape: Customer's Demand

Brand Name: Jinsui

Color: transparent

Place Of Origin: Jiangsu, China

Thickness: 50-200mm

Size: custom made

Light Transmission: High Light Transmission (93%)

Supply Ability & Additional Information

Packaging: Bulk packing: 2 tons per pallet, wooden pallet at the bottom, wrapped around to ensure transportation.

Transportation: Ocean

Supply Ability: 400 tons per month

Port: Shanghai

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW

Packaging & Delivery

Selling Units:: Kilogram

Package Type:: Bulk packing: 2 tons per pallet, wooden pallet at the bottom, wrapped around to ensure transportation.

Picture Example:

During the transportation and storage of the Acrylic Board, the organic solvent should not be co-existed with the acrylic board, and the acrylic board should not directly contact with the organic solvent. therefore, the cleaning agent should not be used when cleaning the board, and the acrylic board should be wiped with a soft cloth dipped in soapy water.

Acrylic Swimming Pool Panel

Products and Applications

Why Choose Us

Strong Production Capacity

7-10 days short production time, huge stock, large capacity.

QC

Examine the interior of each acrylic board under light.

Flat surface

Milling surface smooth on each acrylic board.

Tempered

Remove internal stress tempered in oven each Acrylic Glass.

Top Edge Polishing and Chamfering

The top edge is polished and chamfered to protect the body from scratches.

Blue Painting if necessary

Decorate the installation sides with green blue paint.

45- or 90-degrees Bonding

Superb bonding technology, so that the seams perfect.

SGS Test

Test tensile strength and Vicat softening temperature for each production batch.

How to order

1.TELL US THE SIZE

Tell us your swimming pool length, width and height, water level. It is better to have design file.

2.DRAFT DESIGN

By finite element analysis, we are sure the thickness of Acrylic Sheet and draw design for you.

3.PRODUCTION

We start production, cutting, bonding, bending, polishing, QC and packing, shipping to you.

4.INSTALLATION

We provide you with swimming pool panel installation guide, our engineer can go to your side to do installation if necessary.

Products Description

Material	Lucite Acrylic
Thickness	20-300mm customized
Color	Clear/transparent
Shape	Customer's Demand
Surface	High Surface Hardness
Light transmission	High light transmission (93%)
Diaphaneity	More than 93%
Packing	PE film masking on both sides, KT board and angle iron.
Application	Undersea world, Oceanarium, Zoo, Luxurious hotels, Swimming pools and so on.

Data sheet

PROPERTIES	VALUES	RULES
Density	1.19 g/cm3	ISO 1183-1:2012 Method A
Rockwell Hardness	112L	ISO 2039-2:1999
Tensile Modulus	3150MPa	EN ISO 527:2012
Tensile Strength	80.0MPa	EN ISO 527:2012
Tensile Strain at Break	3.2%	EN ISO 527-1:2012
Water Absorption	0.20%	ISO 62:2008 Method 1
Total Luminous Transmittance	93.4%	ISO 13468-1:1996
Vicat Softening Temperature	105℃	ISO 306:2013 Method B50
Light Ageing Test- UV Exposure	Grey scale: 5	ISO 4892-3:2016 Cycle 1
Mean Coefficient of Linear Thermal Expansion	72×10-6 K-1	ISO 11359-1:2014
Compressive Stress at Yield	129MPa	EN ISO 604:2003
Flexural Strength	120MPa	ISO 178:2013
Compressive Yield Strength	111MPa	ASTM D695-15
Compressive Modulus	3450MPa	ASTM D695-15
Shear Strength	59.7MPa	ASTM D732-17
Deflection Temperature under Load	100.2℃	ASTM D648-18 Method B
Modulus Elasticity	2810MPa	ASTM D695-15
