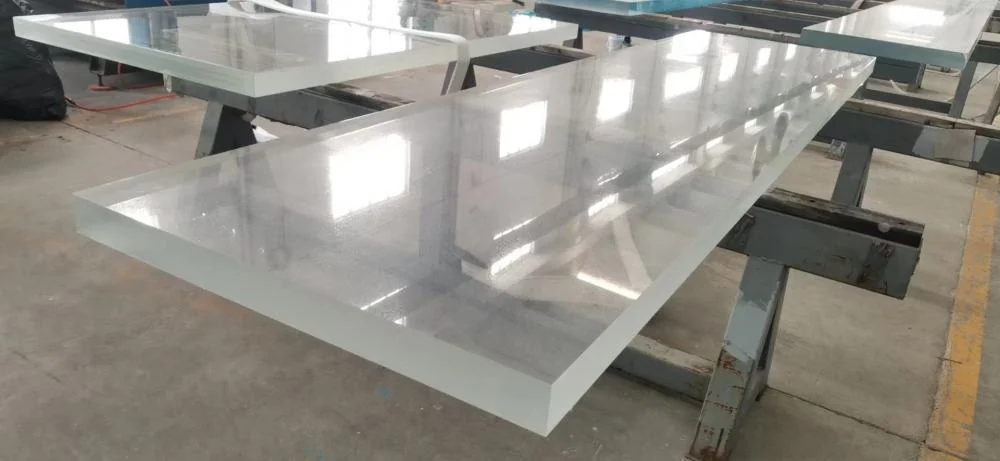

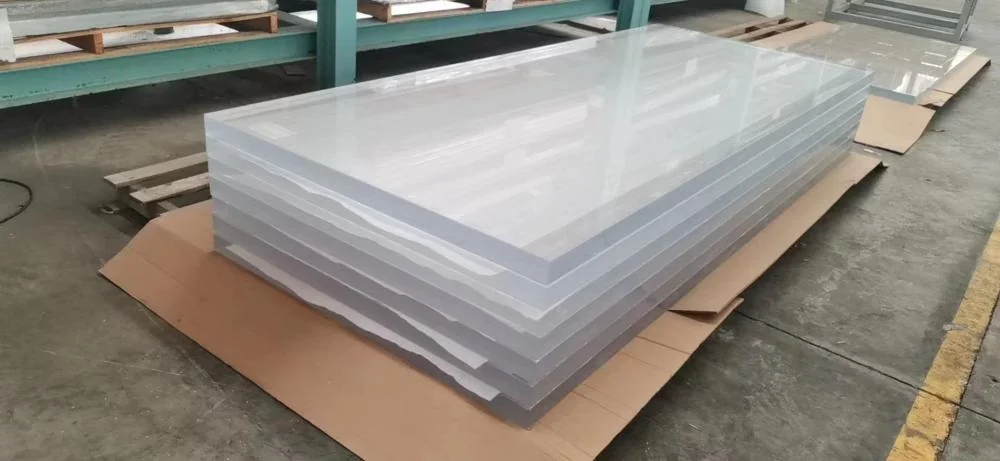

Clear Cast Acrylic Plexiglass Sheet
  • Clear Cast Acrylic Plexiglass Sheet
  • Clear Cast Acrylic Plexiglass Sheet
  • Clear Cast Acrylic Plexiglass Sheet
  • Clear Cast Acrylic Plexiglass Sheet
  • Clear Cast Acrylic Plexiglass Sheet

Clear Cast Acrylic Plexiglass Sheet

$6.5 - 11.4 /Kilogram
Payment Type:
L/C,T/T
Incoterm:
FOB,CIF,EXW
Min. Order:
200 Kilogram
Transportation:
Ocean,Land
Port:
Shanghai
Contact Now
Share:
  • Product Description
< >
Overview
Product Attributes

Place Of Origin: China

Material: Acrylic

Processing Service: Cutting

Materials: Pmma, Acrylic

Place Of Origin: Jiangsu, China

Brand Name: Jinsui

Density: 1.2g/Cm3

Color: Clear

Light Transmission: High Light Transmission (92%)

Resistant: Excellent Resistance to Weather

Supply Ability & Additional Information

Packaging: Bulk packing: 2 tons per pallet, wooden pallet at the bottom, wrapped around to ensure transportation safety. FCL loading: 18-20 tons per 20 feet container.

Transportation: Ocean,Land

Supply Ability: 400 tons/long tons per month

Port: Shanghai

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW

Packaging & Delivery
Selling Units:
Kilogram
Package Type:
Bulk packing: 2 tons per pallet, wooden pallet at the bottom, wrapped around to ensure transportation safety. FCL loading: 18-20 tons per 20 feet container.
Picture Example:

Acrylic Swimming Pool Panel surface is very smooth and easy to clean.  Unlike cement pools, which can accumulate bacteria and dirt, acrylic pools can effectively reduce bacterial reproduction and keep the water clear.

Acrylic Sheet Introduction

Products and Applications

Acrylic SheetAcrylic Swimming Pool Side BoardAcrylic Swimming Pool Bottom Board

Why Choose Us

Acrylic Panels

Strong Production Capacity

7-10 days short production time, huge stock, large capacity.

Acrylic Sheet Processing

QC

Examine the interior of each Acrylic Sheet under light.

Acrylic Board Processing

Flat surface

Milling surface smooth on each Acrylic Board.

Acrylic Sheet Tempered

Tempered

Remove internal stress tempered in oven each acrylic board.

Acrylic Curved Panel

Top Edge Polishing and Chamfering

The top edge is polished and chamfered to protect the body from scratches.
Acrylic Sheet Paint

Blue Painting if necessary

Decorate the installation sides with green blue paint.

Acrylic board

45- or 90-degrees Bonding

Superb bonding technology, so that the seams perfect.


Acrylic board

SGS Test

Test tensile strength and Vicat softening temperature for each production batch.

Data sheet

PROPERTIES                                                           VALUES                     RULES
Density                                                                     1.19 g/cm3       ISO 1183-1:2012 Method A
Rockwell Hardness                                                  112L ISO         2039-2:1999
Tensile Modulus                                                       3150MPa         EN ISO 527:2012
Tensile Strength                                                       80.0MPa          EN ISO 527:2012
Tensile Strain at Break                                            3.2%                EN ISO 527-1:2012
Water Absorption                                                     0.20%              ISO 62:2008 Method 1
Total Luminous Transmittance                               93.4%              ISO 13468-1:1996
Vicat Softening Temperature                                  105℃               ISO 306:2013 Method B50
Light Ageing Test- UV Exposure                            Grey scale: 5     ISO 4892-3:2016 Cycle 1
Mean Coefficient of Linear Thermal Expansion    72×10-6 K-1   ISO 11359-1:2014
Compressive Stress at Yield                                   129MPa EN       ISO 604:2003
Flexural Strength                                                     120MPa             ISO 178:2013
Compressive Yield Strength                                    111MPa             ASTM D695-15
Compressive Modulus                                              3450MPa          ASTM D695-15
Shear Strength                                                          59.7MPa           ASTM D732-17
Deflection Temperature under Load                       100.2℃            ASTM D648-18 Method B
Modulus Elasticity                                                     2810MPa          ASTM D695-15
