Description:100mm Clear Plexiglass Plate,Acrylic Baffle for the Pool,Transparent Swimming Pool

HomeProductsAcrylic Swimming Pool PanelCustomer size acrylic for pool floor
Contact Supplier
Tang yun

Mr. Tang yun

Leave a message
Contact Now

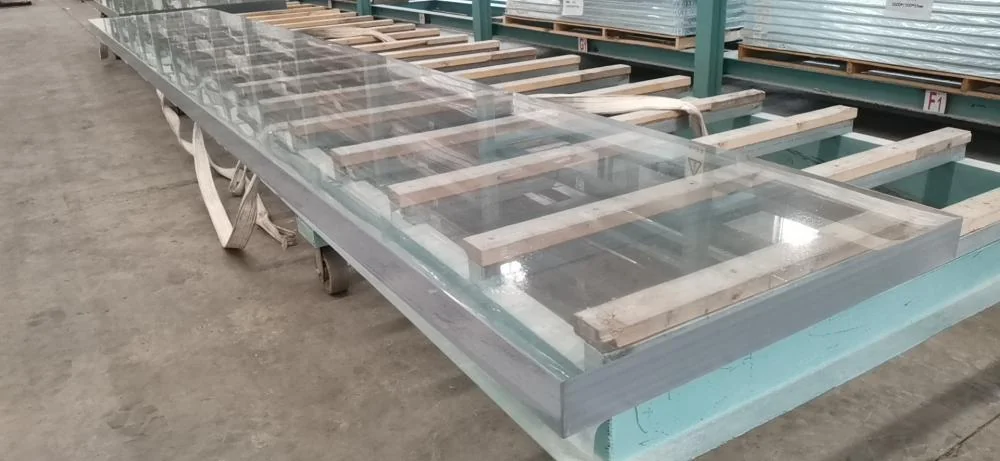

Customer size acrylic for pool floor
  • Customer size acrylic for pool floor
  • Customer size acrylic for pool floor
  • Customer size acrylic for pool floor
  • Customer size acrylic for pool floor
  • Customer size acrylic for pool floor
  • Customer size acrylic for pool floor
  • Customer size acrylic for pool floor

Customer size acrylic for pool floor

$5 - 10.8 /Kilogram
Color:
  • Clear
Contact Now
Share:
  • Product Description
< >
Overview
Product Attributes

Type: Pool

Product Name: acrylic swimming pool

Color: Clear Color

Density: 1.2g/Cm3

Thickness: According water depth

Size: Custom Made

Application: swimming pool

Brand Name: Jinsui

Place Of Origin: Jiangsu, China

Light Transmission: High Light Transmission (93%)

Supply Ability & Additional Information

Packaging: Packing of bulk cargo: 2 tons per pallet, with iron pallet at the bottom, wrapped around to ensure transportation.

Supply Ability: 400 ton/long tons per month

Port: Shanghai

Payment Type: L/C,T/T

Incoterm: FOB,CIF

Packaging & Delivery
Selling Units:
Kilogram
Package Type:
Packing of bulk cargo: 2 tons per pallet, with iron pallet at the bottom, wrapped around to ensure transportation.
Picture Example:

Compared with the traditional glass material, the light transmission performance of Acrylic Sheet is much better, its transmittance can reach 92%, so the acrylic sheet products are very beautiful, but the scratch thickness is very affecting the appearance, especially the acrylic pool.

Acrylic Swimming Pool Panel

Products and Applications

Acrylic Swimming Pool Panel

Acrylic cylinder aquarium
Acrylic Swimming Pool Panel
Acrylic Swimming Pool Panel
Acrylic Swimming Pool Panel

Why choose us?

Acrylic sheet

Strong Production Capacity

7-10 days short production time, huge stock, large capacity.
Acrylic board

QC

Examine the interior of each Acrylic Board under light.
Acrylic board

Flat surface

Milling surface smooth on each acrylic board.
Acrylic Swimming Pool Panel

Tempered

Remove internal stress tempered in oven each acrylic board.
Acrylic board

Top Edge Polishing and Chamfering

The top edge is polished and chamfered to protect the body from scratches.
Acrylic Swimming Pool Panel

Blue Painting if necessary

Decorate the installation sides with green blue paint.
Acrylic board

45- or 90-degrees Bonding

Superb bonding technology, so that the seams perfect.
Acrylic sheet

SGS Test

We provide you with Acrylic Swimming Pool Panel installation guide. If necessary, our engineer can go to your side to do installation.

Products Description

Material
Lucite Acrylic
Thickness
20-300mm customized
Color
Clear/transparent
Shape
Customer's Demand
Surface
High Surface Hardness
Light transmission
High light transmission (93%)
Diaphaneity
More than 93%
Packing
PE film masking on both sides, KT board and angle iron.
Application
Undersea world, Oceanarium, Zoo, Luxurious hotels, Swimming pools and so on.
Acrylic Tunnel

Data sheet

PROPERTIES
VALUES
RULES
Density
1.19 g/cm3
ISO 1183-1:2012 Method A
Rockwell Hardness
112L
ISO 2039-2:1999
Tensile Modulus
3150MPa
EN ISO 527:2012
Tensile Strength
80.0MPa
EN ISO 527:2012
Tensile Strain at Break
3.2%
EN ISO 527-1:2012
Water Absorption
0.20%
ISO 62:2008 Method 1
Total Luminous Transmittance
93.4%
ISO 13468-1:1996
Vicat Softening Temperature
105℃
ISO 306:2013 Method B50
Light Ageing Test- UV Exposure
Grey scale: 5
ISO 4892-3:2016 Cycle 1
Mean Coefficient of Linear Thermal Expansion
72×10-6 K-1
ISO 11359-1:2014
Compressive Stress at Yield
129MPa
EN ISO 604:2003
Flexural Strength
120MPa
ISO 178:2013
Compressive Yield Strength
111MPa
ASTM D695-15
Compressive Modulus
3450MPa
ASTM D695-15
Shear Strength
59.7MPa
ASTM D732-17
Deflection Temperature under Load
100.2℃
ASTM D648-18 Method B
Modulus Elasticity
2810MPa
ASTM D695-15

Packaging and shipping

Acrylic Swimming Pool Panel
Certification
SGS



Product Categories : Acrylic Swimming Pool Panel
