Custom Size Curve Acrylic Swimming Pool Wall Sheet

$3.6 - 8.8 /Kilogram

Payment Type:

L/C,T/T

Incoterm:

FOB,CIF,EXW

Min. Order:

500 Kilogram

Transportation:

Ocean,Land

Port:

Shanghai

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Material: Acrylic

Processing Service: Cutting

Products Type: Acrylic swimming pool

Color: Clear

Materials: Pmma, Acrylic

Density: 1.19-1.20g/Cm3

Brand Name: Jinsui

Place Of Origin: Jiangsu, China

Thickness: 20mm to 800mm

Size: Customer size

Resistant: Excellent Resistance to Weather

Packing: Both Sides Covered by Pe Film or Craft Paper

Light Transmission: High Light Transmission (93%)

Process: Laser Engraving, CNC

Supply Ability & Additional Information

Packaging: 1.Covered with craft paper or PE film. 2. two tons/tray, cover packaging film on each tray and use wooden pallets for protection. 3. 18-20 tons/ 20'GP, total 10 trays.

Transportation: Ocean,Land

Supply Ability: 400 Long Ton/Long Tons per month

Port: Shanghai

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW

Packaging & Delivery

Selling Units:: Kilogram

Package Type:: 1.Covered with craft paper or PE film. 2. two tons/tray, cover packaging film on each tray and use wooden pallets for protection. 3. 18-20 tons/ 20'GP, total 10 trays.

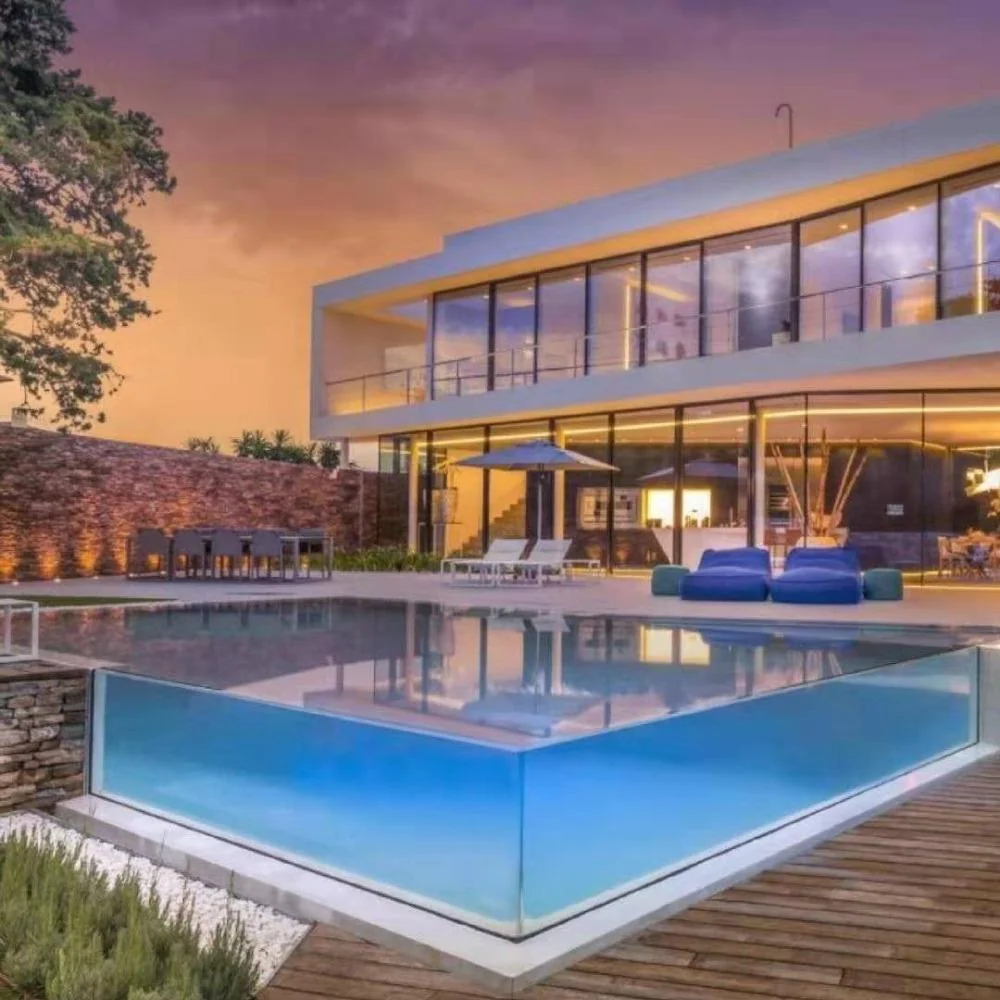

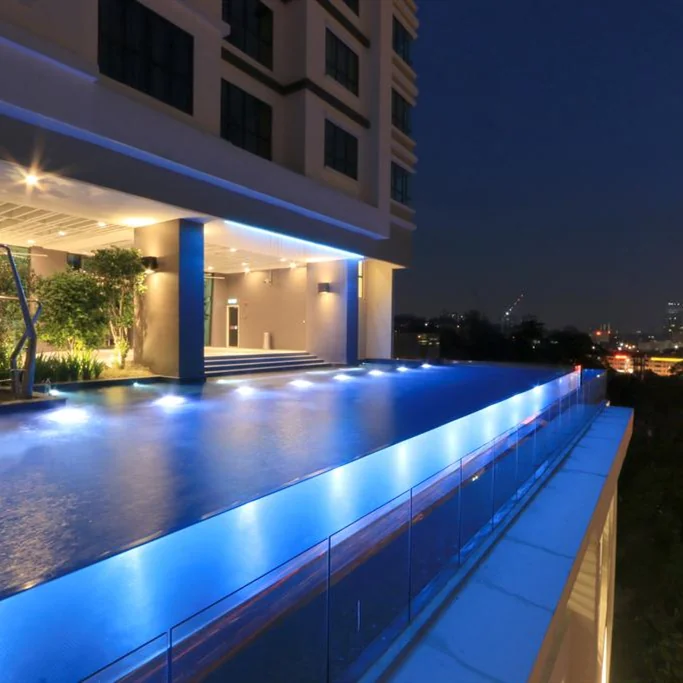

Picture Example:

Outdoor swimming pool for a long time of sunshine and light source irradiation will lead to accelerated aging and yellowing of Acrylic Swimming Pool Panel, high-quality Acrylic Sheet using a unique formula production, while ensuring ultra-high transparency but also has a strong anti-UV aging and anti-yellowing performance.

Acrylic sheet

Products and Applications

Why Choose Us

Strong Production Capacity

7-10 days short production time, huge stock, large capacity.

QC

Examine the interior of each Acrylic Board under light.

Flat surface

Milling surface smooth on each acrylic sheet.

Tempered

Remove internal stress tempered in oven each acrylic board.

Top Edge Polishing and Chamfering

The top edge is polished and chamfered to protect the body from scratches.

Blue Painting if necessary

Decorate the installation sides with green blue paint.

45- or 90-degrees Bonding

Superb bonding technology, so that the seams perfect.

SGS Test

Test tensile strength and Vicat softening temperature for each production batch.

Products Description

Material	Lucite Acrylic
Thickness	20-300mm customized
Color	Clear/transparent
Shape	Customer's Demand
Surface	High Surface Hardness
Light transmission	High light transmission (93%)
Diaphaneity	More than 93%
Packing	PE film masking on both sides, KT board and angle iron.
Application	Undersea world, Oceanarium, Zoo, Luxurious hotels, Swimming pools and so on.

Data sheet

PROPERTIES	VALUES	RULES
Density	1.19 g/cm3	ISO 1183-1:2012 Method A
Rockwell Hardness	112L	ISO 2039-2:1999
Tensile Modulus	3150MPa	EN ISO 527:2012
Tensile Strength	80.0MPa	EN ISO 527:2012
Tensile Strain at Break	3.2%	EN ISO 527-1:2012
Water Absorption	0.20%	ISO 62:2008 Method 1
Total Luminous Transmittance	93.4%	ISO 13468-1:1996
Vicat Softening Temperature	105℃	ISO 306:2013 Method B50
Light Ageing Test- UV Exposure	Grey scale: 5	ISO 4892-3:2016 Cycle 1
Mean Coefficient of Linear Thermal Expansion	72×10-6 K-1	ISO 11359-1:2014
Compressive Stress at Yield	129MPa	EN ISO 604:2003
Flexural Strength	120MPa	ISO 178:2013
Compressive Yield Strength	111MPa	ASTM D695-15
Compressive Modulus	3450MPa	ASTM D695-15
Shear Strength	59.7MPa	ASTM D732-17
Deflection Temperature under Load	100.2℃	ASTM D648-18 Method B
Modulus Elasticity	2810MPa	ASTM D695-15
