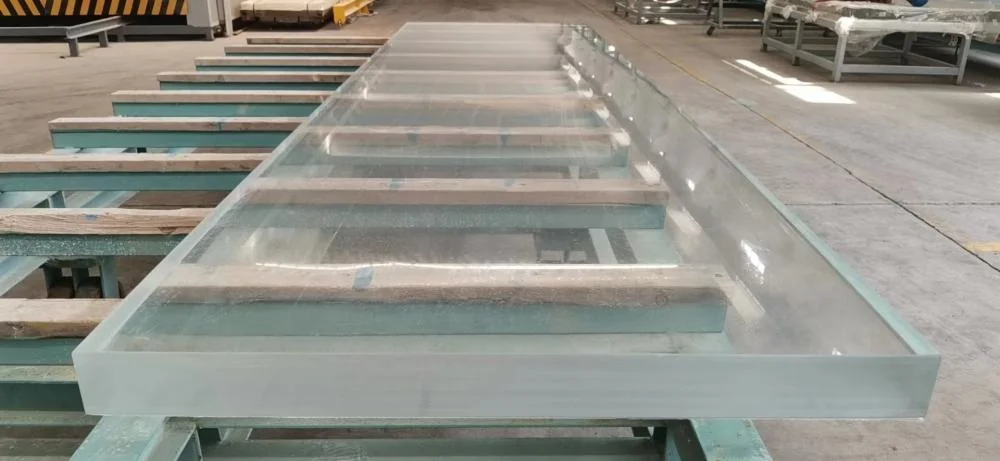

Clear acrylic sheet for swimming pool wall
  • Clear acrylic sheet for swimming pool wall
  • Clear acrylic sheet for swimming pool wall
  • Clear acrylic sheet for swimming pool wall
  • Clear acrylic sheet for swimming pool wall
  • Clear acrylic sheet for swimming pool wall

Clear acrylic sheet for swimming pool wall

$6.8 - 11.5 /Kilogram
Color:
  • Clear
Contact Now
Share:
  • Product Description
< >
Overview
Product Attributes

Type: Pool

Size: Customer Size

Materials: Pmma, Acrylic

Density: 1.19-1.20g/Cm3

Brand Name: Jinsui

Thickness: 20 mm - 300 mm

Place Of Origin: Jiangsu,China

Products Type: Thick Acrylic Sheet

Packing: Both Sides Covered by Pe Film or Craft Paper

Light Transmission: High Light Transmission (93%)

Process: Laser Engraving, CNC, Thermoforming

Supply Ability & Additional Information

Packaging: 1.Covered with craft paper or PE film. 2. two tons/tray, cover packaging film on each tray and use iron pallets for protection. 3. 18-20 tons/ 20'GP, total 10 trays.

Transportation: Ocean,Land

Supply Ability: 400 Long Ton/Long Tons per month

Port: Shanghai

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW

Packaging & Delivery
Selling Units:
Kilogram
Package Type:
1.Covered with craft paper or PE film. 2. two tons/tray, cover packaging film on each tray and use iron pallets for protection. 3. 18-20 tons/ 20'GP, total 10 trays.
Picture Example:


Acrylic infinity pool is a kind of dynamic force, but also to bear the temperature difference of spring, summer, autumn and winter, and the Acrylic Swimming Pool Panel applied in it will bear outdoor sunshine, air, cold air, temperature difference between day and night, seasonal temperature and other interference, to create such a pool, whether on the installation technology or Acrylic Board quality, there are extremely high requirements.

Acrylic swimming pool panel


Products and Applications

Acrylic swimming pool panel
Acrylic cylinder aquarium
Acrylic Swimming Pool Panel
Acrylic Swimming Pool Panel

Why Choose Us

Acrylic sheet

One Time Cast 300mm Thick

Maximum 300mm one time and laminated to 800mm thickness.
Acrylic board

Top Edge Chamfered

With good chamfer on top edge,protect the body,bonding no bubbles.
Acrylic sheet

Strong Production Capacity

7-10days short production time, huge stock, large capacity.

How to order

1.TELL US THE SIZE

Tell us your swimming pool length, width and height, water level. It is better to have design file.

2.DRAFT DESIGN

By finite element analysis, we determine the thickness of acrylic and draw design for you.

3.PRODUCTION

We start production, cutting, bonding, bending, polishing, QC and packing, shipping to you.

4.INSTALLATION

We provide you with Acrylic Swimming Pool panel installation guide, our engineer can go to your side to do installation if necessary.

Products Description

Material
Lucite Acrylic
Thickness
20-300mm customized
Color
Clear/transparent
Shape
Customer's Demand
Surface
High Surface Hardness
Light transmission
High light transmission (93%)
Packing
PE film masking on both sides, KT board and angle iron.
Application
Undersea world, Oceanarium, Zoo, Luxurious hotels, Swimming pools and so on.
Acrylic Tunnel

Data sheet

PROPERTIES
VALUES
RULES
Density
1.19 g/cm3
ISO 1183-1:2012 Method A
Rockwell Hardness
112L
ISO 2039-2:1999
Tensile Modulus
3150MPa
EN ISO 527:2012
Tensile Strength
80.0MPa
EN ISO 527:2012
Tensile Strain at Break
3.2%
EN ISO 527-1:2012
Water Absorption
0.20%
ISO 62:2008 Method 1
Total Luminous Transmittance
93.4%
ISO 13468-1:1996
Vicat Softening Temperature
105℃
ISO 306:2013 Method B50
Light Ageing Test- UV Exposure
Grey scale: 5
ISO 4892-3:2016 Cycle 1
Mean Coefficient of Linear Thermal Expansion
72×10-6 K-1
ISO 11359-1:2014
Compressive Stress at Yield
129MPa
EN ISO 604:2003
Flexural Strength
120MPa
ISO 178:2013
Compressive Yield Strength
111MPa
ASTM D695-15
Compressive Modulus
3450MPa
ASTM D695-15
Shear Strength
59.7MPa
ASTM D732-17
Deflection Temperature under Load
100.2℃
ASTM D648-18 Method B
Modulus Elasticity
2810MPa
ASTM D695-15

Acrylic Sheet Feature:

1.Outdoor use non-yellowing.
2.Lucite new material with 100% pureness.
3.100% Bonding No Bubble, the connector/gap non yellowing.
4.Maximum 300mm can be one time cast without laminated.
5.Heating again in Anneal Oven, Eliminate Environmental Stress.
6.numerical control center mold, more precise for bending size.
7.exist environment in -40℃ to 80℃.

Packaging and shipping

Acrylic panels
