Jiangsu Jinsui Acrylic Technology Co., LTD

 [Jiangsu,China]

Business Type:Manufacturer

Main Markets: Worldwide

Exporter:11% - 20%

Certs:ISO14001, ISO9001, ASME, CCC

Description:70mm 90mm Thick Clear Fiberglass,Acrylic Sheet Above Ground,Acrylic Window Panel for Sale

HomeProductsAcrylic Swimming Pool PanelAcrylic sheet ground acrylic window panel for pool
Contact Supplier
Tang yun

Mr. Tang yun

Leave a message
Contact Now

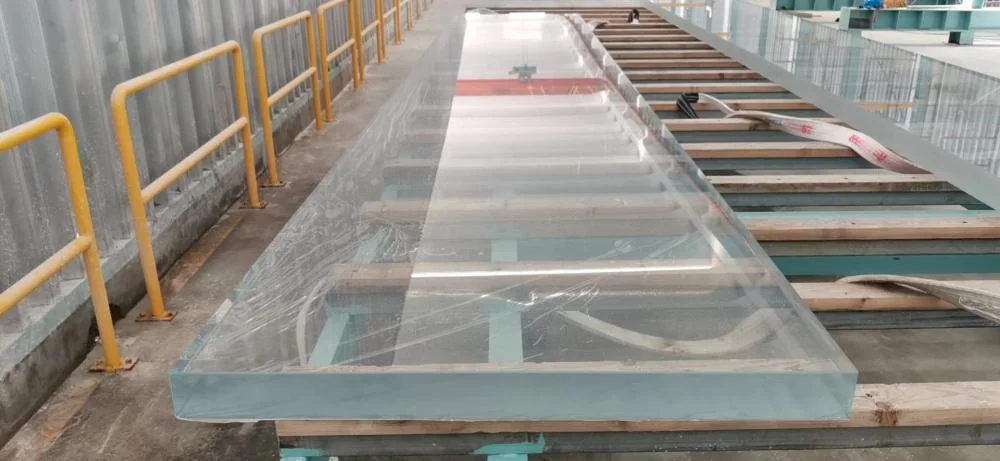

Acrylic sheet ground acrylic window panel for pool
  • Acrylic sheet ground acrylic window panel for pool
  • Acrylic sheet ground acrylic window panel for pool
  • Acrylic sheet ground acrylic window panel for pool
  • Acrylic sheet ground acrylic window panel for pool
  • Acrylic sheet ground acrylic window panel for pool

Acrylic sheet ground acrylic window panel for pool

$3.6 - 11.8 /kilogram
Payment Type:
T/T,L/C
Incoterm:
FOB,CIF,EXW
Min. Order:
300 kilogram
Transportation:
Ocean
Port:
Shanghai
Contact Now
Share:
  • Product Description
< >
Overview
Product Attributes

Material: Acrylic

Processing Service: Cutting

Products Type: Acrylic Sheet

Materials: Pmma, Acrylic

Brand Name: Jinsui

Place Of Origin: Jiangsu, China

Thickness: 20mm - 300mm

Size: Selectable

Density: 1.20g/Cm3

Resistant: Excellent Resistance to Weather

Packing: Both Sides Covered by PE Film or Craft Paper

Light Transmission: High Light Transmission (93%)

Process: Laser Engraving, CNC, Thermoforming

Supply Ability & Additional Information

Packaging: 1.Covered with craft paper or PE film. 2. two tons/tray, cover packaging film on each tray and use iron pallets for protection. 3. 18-20 tons/ 20'GP, total 10 trays.

Transportation: Ocean

Supply Ability: 400 Long Ton/Long Tons per month

Port:  Shanghai

Payment Type: T/T,L/C

Incoterm: FOB,CIF,EXW

Packaging & Delivery
Selling Units:
kilogram
Package Type:
1.Covered with craft paper or PE film. 2. two tons/tray, cover packaging film on each tray and use iron pallets for protection. 3. 18-20 tons/ 20'GP, total 10 trays.
Picture Example:

Acrylic Swimming Pool Panel is currently a popular choice for residential and commercial swimming pools. Because of its good strength and transparency, Acrylic Board will be used on the side wall or bottom of swimming pool.

Products and Applications

Acrylic aquarium tank
Acrylic curved panel
Acrylic swimming pool panel
Acrylic swimming pool panel
Acrylic swimming pool panel

Why Choose Us

Acrylic panels

Strong Production Capacity

7-10 days short production time, huge stock, large capacity.
Acrylic board

QC

Examine the interior of each acrylic board panel under light.
Acrylic panel

Flat surface

Milling surface smooth on each acrylic board.
Acrylic board

Tempered

Remove internal stress tempered in oven each Acrylic Glass.
Acrylic sheet

Top Edge Polishing and Chamfering

The top edge is polished and chamfered to protect the body from scratches.
Acrylic swimming pool panel

Blue Painting if necessary

Decorate the installation sides with green blue paint.
Acrylic board

45- or 90-degrees Bonding

Superb bonding technology, so that the seams perfect.
Acrylic sheet

SGS Test

Test tensile strength and Vicat softening temperature for each production batch.

How to order

1.TELL US THE SIZE

Tell us your swimming pool length, width and height, water level. It is better to have design file.

2.DRAFT DESIGN

By finite element analysis, we are sure the thickness of Acrylic Sheet and draw design for you.

3.PRODUCTION

We start production, cutting, bonding, bending, polishing, QC and packing, shipping to you.

4.INSTALLATION

We provide you with Acrylic Swimming Pool panel installation guide, our engineer can go to your side to do installation if necessary.


Products Description

Material
Lucite Acrylic
Thickness
20-300mm customized
Color
Clear/transparent
Shape
Customer's Demand
Surface
High Surface Hardness
Light transmission
High light transmission (93%)
Packing
PE film masking on both sides, KT board and angle iron.
Application
Undersea world, Oceanarium, Zoo, Luxurious hotels, Swimming pools and so on.
Acrylic tunnel

Data sheet

PROPERTIES
VALUES
RULES
Density
1.19 g/cm3
ISO 1183-1:2012 Method A
Rockwell Hardness
112L
ISO 2039-2:1999
Tensile Modulus
3150MPa
EN ISO 527:2012
Tensile Strength
80.0MPa
EN ISO 527:2012
Tensile Strain at Break
3.2%
EN ISO 527-1:2012
Water Absorption
0.20%
ISO 62:2008 Method 1
Total Luminous Transmittance
93.4%
ISO 13468-1:1996
Vicat Softening Temperature
105℃
ISO 306:2013 Method B50
Light Ageing Test- UV Exposure
Grey scale: 5
ISO 4892-3:2016 Cycle 1
Mean Coefficient of Linear Thermal Expansion
72×10-6 K-1
ISO 11359-1:2014
Compressive Stress at Yield
129MPa
EN ISO 604:2003
Flexural Strength
120MPa
ISO 178:2013
Compressive Yield Strength
111MPa
ASTM D695-15
Compressive Modulus
3450MPa
ASTM D695-15
Shear Strength
59.7MPa
ASTM D732-17
Deflection Temperature under Load
100.2℃
ASTM D648-18 Method B
Modulus Elasticity
2810MPa
ASTM D695-15




Product Categories : Acrylic Swimming Pool Panel
