JINSUI
Type: Pool
Products Type: Acrylic sheet
Resistant: Excellent Resistance To Weather
Materials: Pmma, Acrylic
Packing: Both Sides Covered By Pe Film Or Craft Paper
Light Transmission: High Light Transmission(93%)
Process: Laser Engraving, Cnc, Silk Screen Printing, Thermoforming
Place Of Origin: Jiangsu, China
Brand Name: Jinsui
Density: 1.19-1.20g/cm3
Delivery: Steel pallet
Thickness: 20mm to 200mm
Packaging: 1.Covered with craft paper or PE film on both size 2. two tons/tray, cover packaging film on each tray and use steel pallets for protection 3. 18-20 tons/ 20'GP, total 10 trays.
Supply Ability: 400 tons per month acrylic sheet
Port: Shanghai
Payment Type: L/C,T/T,MoneyGram

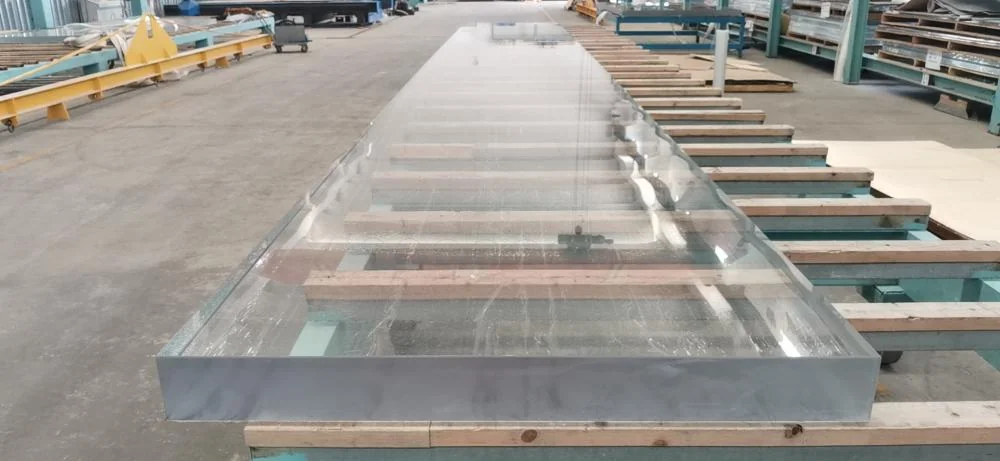

Acrylic Container Pool is made of acrylic thick plate, which has the advantages of beautiful appearance, strong firmness, convenient use, etc. Moreover, because acrylic material has excellent weather resistance, not easy to turn yellow, good surface hardness and luster, large processing plasticity and good transparency, it can meet various required shape conditions. Widely used in the construction of swimming pools and transparent swimming pools in leisure resorts, private villas and clubs.
Test tensile strength and Veka softening temperature for each production batch.
1.TELL US THE SIZE
Through finite element analysis, determine the thickness of the Acrylic Sheet, and draw the design for you.
Products Description
| Material | Lucite Acrylic |
| Thickness | 20-300mm customized |
| Color | Clear/transparent |
| Shape | Customer's Demand |
| Surface | High Surface Hardness |
| Light transmission | High light transmission (95%) |
| Diaphaneity | More than 93% |
| Packing | PE film masking on both sides, KT board and angle iron. |
| Application | undersea world, Oceanarium, Zoo, Luxurious hotels, Swimming pools and so on. |
| PROPERTIES | VALUES | RULES |
| Density | 1.19 g/cm3 | ISO 1183-1:2012 Method A |
| Rockwell Hardness | 112L | ISO 2039-2:1999 |
| Tensile Modulus | 3150MPa | EN ISO 527:2012 |
| Tensile Strength | 80.0MPa | EN ISO 527:2012 |
| Tensile Strain at Break | 3.2% | EN ISO 527-1:2012 |
| Water Absorption | 0.20% | ISO 62:2008 Method 1 |
| Total Luminous Transmittance | 93.4% | ISO 13468-1:1996 |
| Vicat Softening Temperature | 105℃ | ISO 306:2013 Method B50 |
| Light Ageing Test- UV Exposure | Grey scale: 5 | ISO 4892-3:2016 Cycle 1 |
| Mean Coefficient of Linear Thermal Expansion | 72×10-6 K-1 | ISO 11359-1:2014 |
| Compressive Stress at Yield | 129MPa | EN ISO 604:2003 |
| Flexural Strength | 120MPa | ISO 178:2013 |
| Compressive Yield Strength | 111MPa | ASTM D695-15 |
| Compressive Modulus | 3450MPa | ASTM D695-15 |
| Shear Strength | 59.7MPa | ASTM D732-17 |
| Deflection Temperature under Load | 100.2℃ | ASTM D648-18 Method B |
| Modulus Elasticity | 2810MPa | ASTM D695-15 |
Case studies
Product Categories : Container Pool
