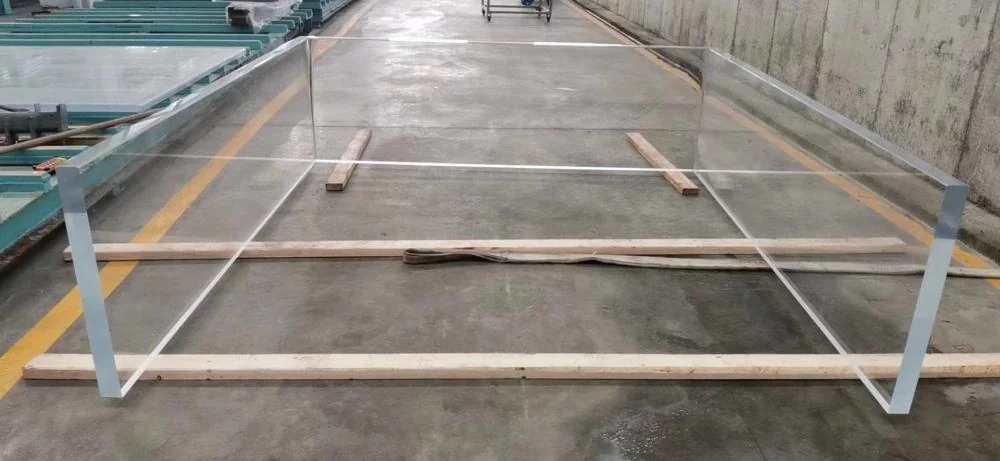

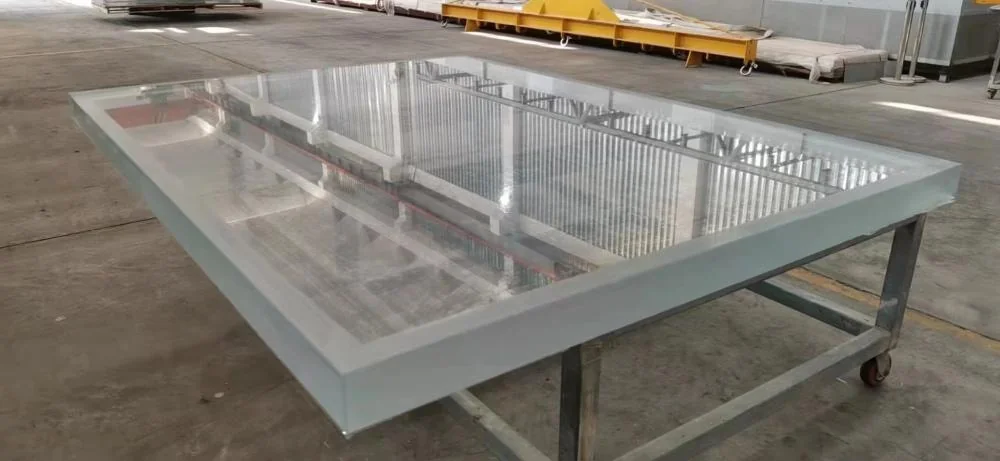

Swimming container pools acrylic window panels
  • Swimming container pools acrylic window panels
  • Swimming container pools acrylic window panels
  • Swimming container pools acrylic window panels
  • Swimming container pools acrylic window panels
  • Swimming container pools acrylic window panels

Swimming container pools acrylic window panels

$7.1 - 11.4 /Kilogram
Color:
  • Clear
Contact Now
Share:
  • Product Description
< >
Overview
Product Attributes

Type: Pool

Materials: Pmma, Acrylic

Place Of Origin: Jiangsu, China

Brand Name: Jinsui

Products Type: container pool

Resistant: Excellent Resistance to Weather

Thickness: 50 to 200mm

Density: 1.19-1.20g/Cm3

Packing: Both Sides Covered by Pe Film or Craft Paper

Light Transmission: High Light Transmission (93%)

Process: Laser Engraving, CNC, Thermoforming

Delivery: Steel Pallet

Supply Ability & Additional Information

Packaging: 1.Covered with craft paper or PE film. 2. two tons/tray, cover packaging film on each tray and use steel pallets for protection. 3. 18-20 tons/ 20'GP, total 10 trays.

Supply Ability: 10 Piece/Pieces per Month

Port: Shanghai

Payment Type: L/C,T/T

Packaging & Delivery
Selling Units:
Kilogram
Package Type:
1.Covered with craft paper or PE film. 2. two tons/tray, cover packaging film on each tray and use steel pallets for protection. 3. 18-20 tons/ 20'GP, total 10 trays.

Acrylic Sheet can be used as the transparent window of the Container Pool. Acrylic sheet has good light transmission performance. Thick acrylic sheet has good toughness and can withstand strong water pressure, and the impact resistance of acrylic is far better than glass.

Container pool

Products and Applications

Acrylic panels
Acrylic cylinder aquarium
Acrylic swimming pool panel
Acrylic swimming pool panel
Acrylic swimming pool panel

Why Choose Us

Acrylic sheet

Strong Production Capacity

7-10 days short production time, huge stock, large capacity.
Acrylic swimming pool panel

QC

Examine the interior of each Acrylic Board under light.
Acrylic board

Flat surface

Milling surface smooth on each board.
Acrylic sheet

Tempered

Remove internal stress tempered in oven each board.
Acrylic board

Top Edge Polishing and Chamfering

The top edge is polished and chamfered to protect the body from scratches.
Acrylic glass

Blue Painting if necessary

Decorate the installation sides with green blue paint.
Acrylic board

45- or 90-degrees Bonding

Superb bonding technology, so that the seams perfect.
Acrylic sheet

SGS Test

Test tensile strength and Vicat softening temperature for each production batch.

How to order

1.TELL US THE SIZE

Tell us your swimming pool length, width and height, water level. It is better to design file.

2.DRAFT DESIGN

By finite element analysis, we determine the thickness of acrylic and draw design for you.

3.PRODUCTION

We start production, cutting, bonding, bending, polishing, QC and packing, shipping to you.

4.INSTALLATION

We provide you with the Acrylic Swimming Pool Panel installation guide, if necessary, our engineers can come to your side to install.

Products Description

Material
Lucite Acrylic
Thickness
20-300mm customized
Color
Clear/transparent
Shape
Customer's Demand
Surface
High Surface Hardness
Light transmission
High light transmission (93%)
Diaphaneity
More than 93%
Packing
PE film masking on both sides, KT board and angle iron.
Application
undersea world, Oceanarium, Zoo, Luxurious hotels, Swimming pools and so on.

Data sheet

PROPERTIES
VALUES
RULES
Density
1.19 g/cm3
ISO 1183-1:2012 Method A
Rockwell Hardness
112L
ISO 2039-2:1999
Tensile Modulus
3150MPa
EN ISO 527:2012
Tensile Strength
80.0MPa
EN ISO 527:2012
Tensile Strain at Break
3.2%
EN ISO 527-1:2012
Water Absorption
0.20%
ISO 62:2008 Method 1
Total Luminous Transmittance
93.4%
ISO 13468-1:1996
Vicat Softening Temperature
105℃
ISO 306:2013 Method B50
Light Ageing Test- UV Exposure
Grey scale: 5
ISO 4892-3:2016 Cycle 1
Mean Coefficient of Linear Thermal Expansion
72×10-6 K-1
ISO 11359-1:2014
Compressive Stress at Yield
129MPa
EN ISO 604:2003
Flexural Strength
120MPa
ISO 178:2013
Compressive Yield Strength
111MPa
ASTM D695-15
Compressive Modulus
3450MPa
ASTM D695-15
Shear Strength
59.7MPa
ASTM D732-17
Deflection Temperature under Load
100.2℃
ASTM D648-18 Method B
Modulus Elasticity
2810MPa
ASTM D695-15

Packaging and shipping
